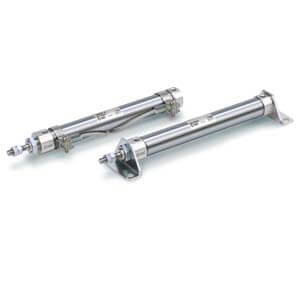

C(D)J2-Z, Air Cylinder, Double Acting, Single Rod – CDJ2B16-25RZ-B
€44,29
Skip to product information
C(D)J2-Z, Air Cylinder, Double Acting, Single Rod – CDJ2B16-25RZ-B
€44,29
VAT not included.
- Round Air Cylinder, Single/Double Acting, Single/Double Rod, Non Rotating, Direct Mounting, and Built-in Speed Controller options.
- Bore sizes (mm): 6, 10 and 16.
- Strokes up to 400 mm.
- Many head covers and mounting brackets available as standard.
- Fine adjustment of the auto switch position by just loosening one screw.
- 2-colour indication solid state auto switches can be mounted.
- Rubber bumper / Air cushion.
- Many made to order available.
Key features
- Standard double acting single rod.<LI>Bore sizes: 6, 10, 16 (mm)<LI>Strokes from 15mm through 400mm depending upon bore size.<LI>Mounts: basic, foot, front flange, double clevis.<LI>Part numbers with rod end bracket and/or pivot bracket available.<LI>Variety of switches and a variety of lead wire lengths.
Specifications
- Magnet: D (Built-in)
- Mounting: B (Basic)
- Bore Size: 16mm
- Stroke: 25
- Cushion: Rubber Cushion
- Head Cover: R (Axial)
- Pivot Bracket: None
- Rod End Bracket: None
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
- Auto Switch Mounting: B (Band Mounting)
- Rod End Options: None
Additional information
- Part number: CDJ2B16-25RZ-B
- Lead time (days): 6
- Minimum order quantity: 1
- Country of origin: CZ
- TARIC code: 8412310090
