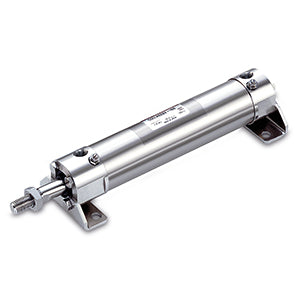

C(D)G5-S, Stainless Steel Cylinder, Double Acting, Single Rod – CDG5EA25TFSV-75
€154,08
Skip to product information
C(D)G5-S, Stainless Steel Cylinder, Double Acting, Single Rod – CDG5EA25TFSV-75
€154,08
VAT not included.
- SMC's CG5-S series is a stainless steel cylinder, perfect for use in wash down applications such as food processing machinery requiring intense cleaning. The use of non-toxic additives allows confident use in equipment for foods, beverages and medical products, etc. The CG5-S can be disassembled, allowing replacement of seals, which promotes an extended service life. SMC provides plugs for unused mounting threads to prevent residue build-up in the threads. The use of stainless steel (SUS304) on external metal parts provides improved corrosion resistance in environments with exposure to water.
Key features
- Double acting, single rod CG5-S cylinder
- All stainless steel external parts
- Special scraper prevents water from entering cylinder
- Bore sizes (mm): 20, 25, 32, 40, 50, 63, 80 and 100
- Auto switch capability
Specifications
- Mounting: E (Integral Clevis)
- Bore Size: 25mm
- Stroke: 75
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
- Magnet: D (Built-in)
- Rod End Options: None
- Temperature Resistance: None
- Style: A (Non-lube Air Cushion)
- Seal Material: V (FKM)
- Auto Switch: None
- Thread: Rc (M5 for Air Cushion 20 & 25 Bore)
Additional information
- Part number: CDG5EA25TFSV-75
- Lead time (days): 3
- Minimum order quantity: 1
- Country of origin: ES
- TARIC code: 8412310090
