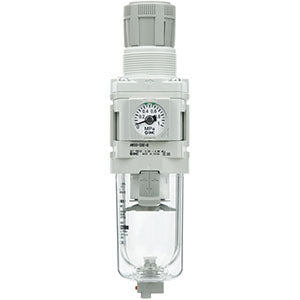

AW20-D to AW60-D, Filter Regulator & Filter Regulator w/Backflow Function | AW30-F02D-D

FILTER REGULATOR

Modular-style Filter Regulator ISO 8573-1:2010 compliant Maximum flow rate up to 17500 l/min (ANR, 0.7MPa).

Features

• ISO 8573-1:2010 compliant
• Maximum flow rate up to 17600 l/min (ANR, 0.7MPa).

Specifications

• Part number: AW30-F02D-D
• Item number: 02121457
• Body Size: 30
• Backflow Function: None
• Thread: F (G)
• Port Size: 02 (1/4)
• Options: D (Float Type Auto Drain [N.O.])
• Set pressure: 0.05 to 0.85 MPa Setting
• Bowl: Polycarbonate Bowl
• Drain Guide: Standard
• Exhaust Mechanism: Relieving
• Flow Direction: Left to Right
• Drain Cock w/Barb Fitting: None
• Pressure Units: Standard (Name Plate, Caution Plate for Bowl, and Pressure Gauge: MPa)
• Lead time: 110 days
• Country of origin: CZ

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
• Operation manual
