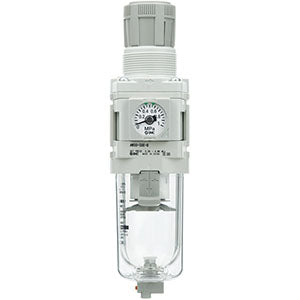

AW20-D to AW60-D, Filter Regulator & Filter Regulator w/Backflow Function | AW20-F02H-D
€33,57
Skip to product information
AW20-D to AW60-D, Filter Regulator & Filter Regulator w/Backflow Function | AW20-F02H-D
€33,57
VAT not included.
FILTER REGULATOR
Modular-style Filter Regulator ISO 8573-1:2010 compliant Maximum flow rate up to 17500 l/min (ANR, 0.7MPa).
Features
- ISO 8573-1:2010 compliant
- Maximum flow rate up to 4000 l/min (ANR, 0.7MPa).
Specifications
- Part number: AW20-F02H-D
- Item number: 02124035
- Body Size: 20
- Backflow Function: None
- Thread: F (G)
- Port Size: 02 (1/4)
- Options: H (w/Set Nut, for Panel Mount)
- Set pressure: 0.05 to 0.85 MPa Setting
- Bowl: Polycarbonate Bowl
- Drain Guide: Standard
- Exhaust Mechanism: Relieving
- Flow Direction: Left to Right
- Drain Cock w/Barb Fitting: None
- Pressure Units: Standard (Name Plate, Caution Plate for Bowl, and Pressure Gauge
- Lead time: 5 days
- Country of origin: JP
