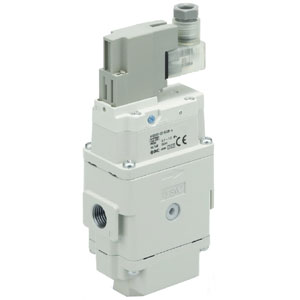

AV2000/3000/4000/5000-A, Soft Start-up Valve | AV4000-F04-5DZ-A
€174,70
VAT not included.
SOFT START-UP VALVE
Soft start-up valve Flow rate up to 11908 l/min (ANR) Optional built-in silencer Operating pressure range: 0.2 to 1.0 MPa IP65 enclosure.
Features
- Power consumption: 0,35 W
- Improved flow rate characteristics: Up to 2,3 times C[dm³/ (s·bar)]: 9,2
- Energy saving: No air flow when the main valve is switched
- Improved adjustability at low speed air supply
- Smaller profile and less work hours due to integrated silencer.
Specifications
- Part number: AV4000-F04-5DZ-A
- Item number: 01647072
- Electrical Entry: D (Type D, DIN Terminal w/Connector)
- Body Size: 4000
- Surge Suppressor: Z (With light/surge voltage suppressor)
- Port Size: 04 (1/2)
- Flow Direction/Pressure Unit: Flow direction: left to right
- Option: None
- Manual Override: Non-locking Push Type
- Thread: F (G)
- Rated Voltage: 5 (24 VDC)
- Lead time: 115 days
- Country of origin: JP
