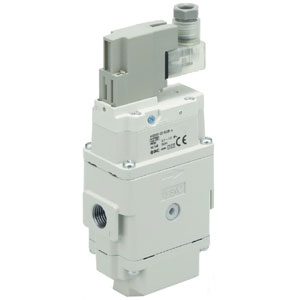

AV2000/3000/4000/5000-A, Soft Start-up Valve | AV3000-F03-5YOB-A
€159,87
Skip to product information
AV2000/3000/4000/5000-A, Soft Start-up Valve | AV3000-F03-5YOB-A
€159,87
VAT not included.
SOFT START-UP VALVE
Pilot operated soft start-up valve Low power consumption: 0.35 W (DC type) Improved flow rate by up to 2.2 times Better adjustability at low speed air supply Modular connection for connecting to F.R.L. units Optional built-in silencer IP65 enclosure.
Features
- Power consumption: 0,35 W
- Improved flow rate characteristics: Up to 2,3 times C[dm³/ (s·bar)]: 9,2
- Energy saving: No air flow when the main valve is switched
- Improved adjustability at low speed air supply
- Smaller profile and less work hours due to integrated silencer.
Specifications
- Part number: AV3000-F03-5YOB-A
- Item number: 01543377
- Body Size: 3000
- Thread: F (G)
- Port Size: 03 (3/8)
- Option: None
- Rated Voltage: 5 (24 VDC)
- Electrical Entry: YO (Type Y DIN Terminal w/o Connector)
- Surge Suppressor: None
- Manual Override: B (Push-locking slotted style)
- Flow Direction/Pressure Unit: Flow direction
- Lead time: 5 days
- Country of origin: JP
