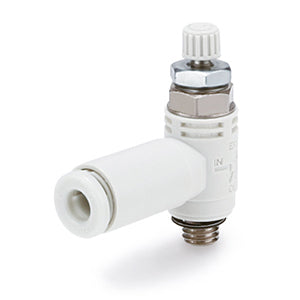

Standard - ASV – ASV510F-03-12S
€27,82
VAT not included.
- The ASV series of speed exhaust controller is available in two styles depending on size. The ASV120F/220F are elbow styles that look like a standard speed controller. The ASV310F~510 are a tee-type design with twice the flow capacity of a standard speed controller and also add flame resistance for use in welding applications.
Key features
- Flame resistant resin (Equivalent to UL-94 Standard V-0)
- Port Size: M3, M5, 10-32 UNF, 1/8, 1/4, 3/8, 1/2
- Applicable Tubing O.D.: Ø 4 to Ø 12 mm and Ø 5/32" to Ø 1/2"
- Operating Pressure Range: 0.1 to 1 MPa.
Specifications
- Size: 5 (3/8 Basis)
- Style: 1 (Union Tee)
- Thread: M3, M5, U10/32, R
- Port Size: 03 (R3/8)
- Tube Size: Ø12
- Sealant: S [Sealant (01,02,03,04)]
- Option: None
- Made to Order: None
- Lock Nut: Standard (Hexagon)
Additional information
- Part number: ASV510F-03-12S
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8481209090
