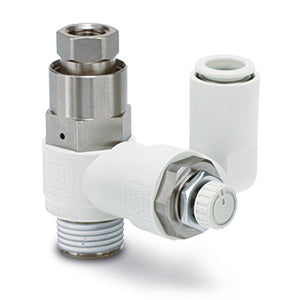

Integrated Pilot Check Valve - ASP – ASP330F-01-06S
€40,25
Skip to product information
Integrated Pilot Check Valve - ASP – ASP330F-01-06S
€40,25
VAT not included.
- Series ASP is a speed controller with an integrated pilot check valve. This combination makes it possible to control cylinder speeds and permits temporary intermediate stops. The ASP is standard with electroless nickel plating on all brass parts and allows 360 degree freedom for tube mounting direction.
Key features
- Port Size: 1/8, 1/4, 3/8, 1/2
- Applicable Tubing O.D.: Ø 6 to Ø 12 mm and Ø 1/4" to Ø 1/2"
- Operating Pressure Range: 0.1 to 1 MPa.
Specifications
- Body Size: 3 (1/8 Basis)
- Port Size: 01 (Cylinder Side [R [PT] 1/8] Pilot Port [M5X0.8])
- Applicable Tube OD: Ø6
- Made to Order: None
- Lock Nut: Standard (Hexagon)
Additional information
- Part number: ASP330F-01-06S
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8481209090
