Dual - ASD*FG – ASD630FG-04-10S
€70,31
Skip to product information
Dual - ASD*FG – ASD630FG-04-10S
€70,31
VAT not included.

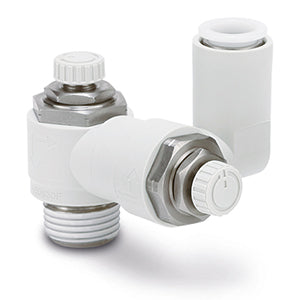

- Series ASD, combines a meter-in and meter-out dual speed controller in a single body. The series is available with PT or NPT ports and one-touch fittings are standard. Tamper proof and flat head screwdriver adjustable versions are also available for extra protection against inadvertent operation.
Key features
- Stainless Steel 303
- Enables bi-directional flow control
- Port Size: M5, 10-32 UNF, 1/8, 1/4, 3/8, 1/2
- Applicable Tubing O.D.: Ø 4 to Ø 12 mm and Ø 1/8" to Ø 3/8"
- Operating Pressure Range: 0.1 to 1 MPa.
Specifications
- Body Size: 6 (1/2 Basis)
- Port Size: 04 (1/2)
- Applicable Tube OD: 10 (Ø10 mm)
- Sealant: S (Sealant)
- Made to Order: None
- Lock Nut: Standard (Hexagon)
Additional information
- Part number: ASD630FG-04-10S
- Lead time (days): 18
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8481209090
