Dual - ASD – ASD530F-03-12S
€35,51
Skip to product information

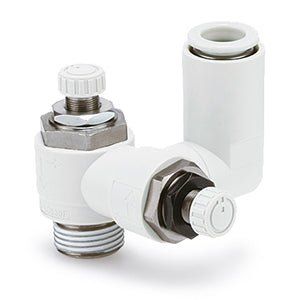

Dual - ASD – ASD530F-03-12S
€35,51
VAT not included.
- Series ASD, combines a meter-in and meter-out dual speed controller in a single body. The series is available with PT or NPT ports and one-touch fittings are standard. Tamper proof and flat head screwdriver adjustable versions are also available for extra protection against inadvertent operation.
Key features
- Enables bi-directional flow control
- Port Size: M5, 10-32 UNF, 1/8, 1/4, 3/8, 1/2
- Applicable Tubing O.D.: Ø 4 to Ø 12 mm and Ø 1/8" to Ø 3/8"
- Operating Pressure Range: 0.1 to 1 MPa.
Specifications
- Body Size: 5 (3/8 Basis)
- Port Size: 03 (3/8)
- Applicable Tube OD: 12 (Ø12 mm)
- Sealant: S (Sealant)
- Made to Order: None
- Lock Nut: Standard (Hexagon)
Additional information
- Part number: ASD530F-03-12S
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8481209090
