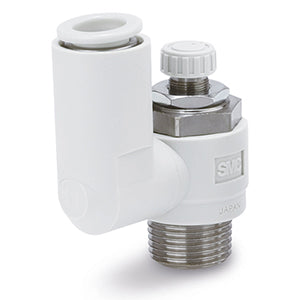

Universal - AS*3*1F – AS4301F-04-12S

• Using SMC flow controls with built in one-touch fittings minimizes installation time, reduces mounting height and enables a more compact machine design. These flow controls allow the body to be rotated to facilitate simple installation. Available in thread sizes from M3 to 1/2 in both inch (NPT) and metric R(PT) and with tube sizes from 3.2mm to 12mm OD (metric) and 1/8 to 1/2 OD (inch) and with optional elbow and universal style (increased flexibility) and meter in and meter out, these flow controls are designed to meet most applications.

Key features

• Port Size: M3, M5, 10-32 UNF, 1/8, 1/4, 3/8, 1/2
• Applicable Tubing O.D.: Ø 3.2 to Ø 12 mm and Ø 1/8" to Ø 1/2"
• Operating Pressure Range: 0.1 to 1 MPa.

Specifications

• Size: 43 (1/2 Basis - universal)
• Control Method: 0 (Meter-out)
• Port Size and Tube Size: 04-12 (Port Size R1/2 - Tube Size ø12)
• Option: S (Sealant)
• Fixed Orifice: None
• Made to Order: None
• Lock Nut: Standard (Hexagon)

Additional information

• Part number: AS4301F-04-12S
• Lead time (days): 5
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8481209090
