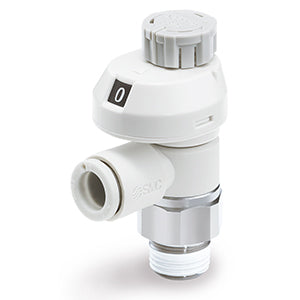

Elbow - AS*2*1FS – AS3201FS-G03-08
€23,47
VAT not included.
- Using SMC flow controls with built in one-touch fittings minimizes installation time, reduces mounting height and enables a more compact machine design. These flow controls allow the body to be rotated to facilitate simple installation. Available in thread sizes from M3 to 1/2 in both inch (NPT) and metric R(PT) and with tube sizes from 3.2mm to 12mm OD (metric) and 1/8 to 1/2 OD (inch) and with optional elbow and universal style (increased flexibility) and meter in and meter out, these flow controls are designed to meet most applications.
Key features
- Port Size: M5, 10-32 UNF, 1/8, 1/4, 3/8, 1/2
- Applicable Tubing O.D.: Ø 2 to Ø 16 mm and Ø 1/8" to Ø 1/2"
- Operating Pressure Range: 0.1 to 1 MPa.
Specifications
- Type: 2 (Elbow)
- Tubing: 08 (ø8)
- Body Size: 3 (3/8)
- Control Type: 0 (Meter-out)
- Port Size: 03 (3/8)
- Indicator Direction: 0°
- Width Across Flats: 9 mm (or None: Sizes 2/3/4)
- Seal: w/o Sealant
- Clean Series: None
- Thread: G
- Made to Order: None
Additional information
- Part number: AS3201FS-G03-08
- Lead time (days): 18
- Minimum order quantity: 1
- Country of origin: IN
- TARIC code: 8481209090
