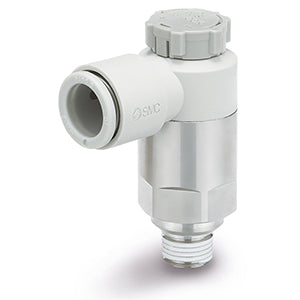

Large Flow, Elbow - AS*-X778 – AS3201F-01-06SA-X778
€25,15
Skip to product information
Large Flow, Elbow - AS*-X778 – AS3201F-01-06SA-X778
€25,15
VAT not included.
- Using SMC flow controls with built in one-touch fittings minimizes installation time, reduces mounting height and enables a more compact machine design. These flow controls allow the body to be rotated to facilitate simple installation. Available in thread sizes from M3 to 1/2 in both inch (NPT) and metric R(PT) and with tube sizes from 3.2mm to 12mm OD (metric) and 1/8 to 1/2 OD (inch) and with optional elbow and universal style (increased flexibility) and meter in and meter out, these flow controls are designed to meet most applications.
Key features
- Increased orifice diameter
- Port Size: 1/8
- Applicable Tubing O.D.: Ø 6 to Ø 10 mm
- Operating Pressure Range: 0.1 to 1 MPa.
Specifications
- Applicable Tubing O.D.: 06 (ø6)
Additional information
- Part number: AS3201F-01-06SA-X778
- Lead time (days): 28
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8481209090
