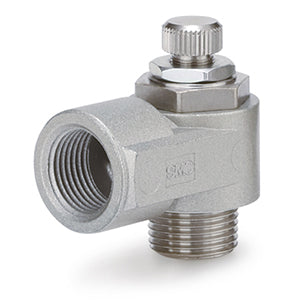

Elbow - AS*2*0 – AS2200-01-S
€20,15
Skip to product information
Elbow - AS*2*0 – AS2200-01-S
€20,15
VAT not included.
- Lightweight, compact, and precision control make these flow controls the right choice for many heavy-duty applications. These flow controls are offered with in-line and elbow construction to give the widest choice to your unique application. Locking nuts are included as standard as well as simplified mounting. Thread sizes range from M3 to 2 and are available in both inch (NPT) and metric R/Rc(PT)
Key features
- Port Size: M3, M5, 10-32 UNF, 1/8, 1/4, 3/8, 1/2
- Operating Pressure Range: 0.1 to 1 MPa.
Specifications
- Size: 2 (1/8, 1/4 Basis)
- Style: 2 (Elbow)
- Control Method: 0 (Meter-out)
- Port Size: 01 (1/8)
- Option: S (Sealant)
- Made to Order: None
- Lock Nut: Standard (Hexagon)
Additional information
- Part number: AS2200-01-S
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8481209090
