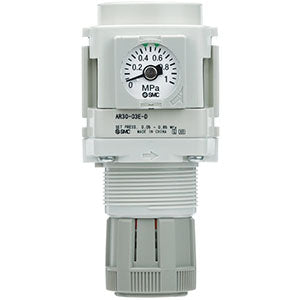

AR20-D to AR60-D, Regulator & Regulator w/Backflow Function | AR40K-F04H-D
€40,58
Skip to product information
AR20-D to AR60-D, Regulator & Regulator w/Backflow Function | AR40K-F04H-D
€40,58
VAT not included.
MODULAR STYLE REGULATOR
Modular-style Regulator Up to 0.85 MPa set pressure Maximum flow rate up to 20000 l/min (ANR, 0.7MPa).
Features
- ISO 8573-1:2010 compliant
- Up to 0.85 MPa set pressure
- Maximum flow rate up to 20000 l/min (ANR, 0.7MPa).
Specifications
- Part number: AR40K-F04H-D
- Item number: 02193760
- Body Size: 40
- Backflow Function: K (w/Backflow Function)
- Thread: F (G)
- Port Size: 04 (1/2)
- Options: H (w/Set Nut, for Panel Mount)
- Set pressure: 0.05 to 0.85 MPa Setting
- Exhaust Mechanism: Relieving
- Flow Direction: Left to Right
- Knob: Downward
- Pressure Units: Standard (Name Plate, Caution Plate for Bowl, and Pressure Gauge: MPa)
- Lead time: 4 days
- Country of origin: JP
