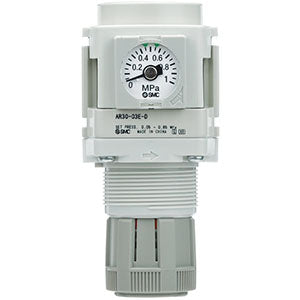

AR20-D to AR60-D, Regulator & Regulator w/Backflow Function | AR40K-F03E-D
€51,52
VAT not included.
MODULAR STYLE REGULATOR
Modular-style Regulator Up to 0.85 MPa set pressure Maximum flow rate up to 20000 l/min (ANR, 0.7MPa).
Features
- ISO 8573-1:2010 compliant
- Up to 0.85 MPa set pressure
- Maximum flow rate up to 20000 l/min (ANR, 0.7MPa).
Specifications
- Part number: AR40K-F03E-D
- Item number: 02193742
- Body Size: 40
- Backflow Function: K (w/Backflow Function)
- Thread: F (G)
- Port Size: 03 (3/8)
- Options: E [w/Square Embedded Type Pressure Gauge (w/Limit Indicator)]
- Set pressure: 0.05 to 0.85 MPa Setting
- Exhaust Mechanism: Relieving
- Flow Direction: Left to Right
- Knob: Downward
- Pressure Units: Standard (Name Plate, Caution Plate for Bowl, and Pressure Gauge: MPa)
- Lead time: 6 days
- Country of origin: CZ
