AR20-D to AR60-D, Regulator & Regulator w/Backflow Function | AR40-F03H-D
€40,58
Skip to product information
AR20-D to AR60-D, Regulator & Regulator w/Backflow Function | AR40-F03H-D
€40,58
VAT not included.

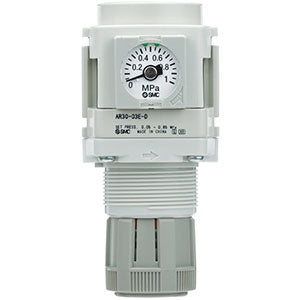

MODULAR STYLE REGULATOR
Modular-style Regulator Up to 0.85 MPa set pressure Maximum flow rate up to 20000 l/min (ANR, 0.7MPa).
Features
- ISO 8573-1:2010 compliant
- Up to 0.85 MPa set pressure
- Maximum flow rate up to 20000 l/min (ANR, 0.7MPa).
Specifications
- Part number: AR40-F03H-D
- Item number: 02193695
- Options: H (w/Set Nut, for Panel Mount)
- Pressure Units: Standard (Name Plate, Caution Plate for Bowl, and Pressure Gauge: MPa)
- Body Size: 40
- Set pressure: 0.05 to 0.85 MPa Setting
- Knob: Downward
- Port Size: 03 (3/8)
- Exhaust Mechanism: Relieving
- Backflow Function: None
- Flow Direction: Left to Right
- Thread: F (G)
- Lead time: 6 days
- Country of origin: CZ
