AR20-D to AR60-D, Regulator & Regulator w/Backflow Function | AR30K-F02E-D
€40,64
Skip to product information

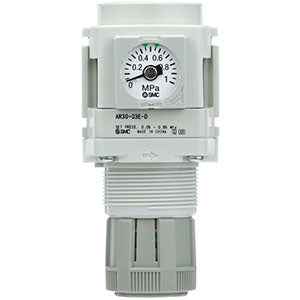

AR20-D to AR60-D, Regulator & Regulator w/Backflow Function | AR30K-F02E-D
€40,64
VAT not included.
REGULATOR WITH BACK FLOW MECHANISM
Modular-style Regulator Up to 0.85 MPa set pressure Maximum flow rate up to 20000 l/min (ANR, 0.7MPa).
Features
- ISO 8573-1:2010 compliant
- Up to 0.85 MPa set pressure
- Maximum flow rate up to 20000 l/min (ANR, 0.7MPa).
Specifications
- Part number: AR30K-F02E-D
- Item number: 02121444
- Options: E (Square Embedded Type Pressure Gauge, w/Limit Indicator)
- Pressure Units: Standard (Name Plate, Caution Plate for Bowl, and Pressure Gauge: MPa)
- Set Pressure: 0.05 to 0.85 MPa Setting
- Body Size: 30
- Knob: Downward
- Port Size: 02 (1/4)
- Exhaust Mechanism: Relieving
- Backflow Function: K (w/Backflow Function)
- Flow Direction: Left to Right
- Thread: F (G)
- Lead time: 6 days
- Country of origin: CZ
