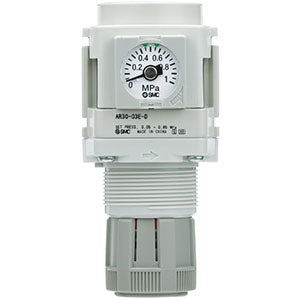

AR20-D to AR60-D, Regulator & Regulator w/Backflow Function | AR20K-F02E-D

MODULAR STYLE REGULATOR

Modular-style Regulator Up to 0.85 MPa set pressure Maximum flow rate up to 20000 l/min (ANR, 0.7MPa).

Features

• ISO 8573-1:2010 compliant
• Up to 0.85 MPa set pressure
• Maximum flow rate up to 5000 l/min (ANR, 0.7MPa).

Specifications

• Part number: AR20K-F02E-D
• Item number: 02074826
• Body Size: 20
• Backflow Function: K (w/Backflow Function)
• Thread: F (G)
• Port Size: 02 (1/4)
• Options: E [w/Square Embedded Type Pressure Gauge (w/Limit Indicator)]
• Set pressure: 0.05 to 0.85 MPa Setting
• Exhaust Mechanism: Relieving
• Flow Direction: Left to Right
• Knob: Downward
• Pressure Units: Standard (Name Plate, Caution Plate for Bowl, and Pressure Gauge
• Lead time: 5 days
• Country of origin: CN

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
• Operation manual
