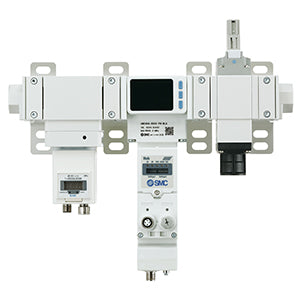

Air Management System, Electro-Pneumatic Regulator Type – AMS20/30/40/60-A | AMS40A-F04C-PN-KLG
€2.887,79
Skip to product information
Air Management System, Electro-Pneumatic Regulator Type – AMS20/30/40/60-A | AMS40A-F04C-PN-KLG
€2.887,79
VAT not included.
AIR MANAGEMENT SYSTEM
Programmable standby and isolation modes Flow rate, pressure and temperature monitoring Compatible with wireless systems Flow rate up to 4000 l/min at 0.7 MPa Port sizes: 1/8, 1/4, 3/8, 1/2, 3/4, 1 Modular connection.
Features
- Programmable standby and isolation modes
- Flow rate, pressure and temperature monitoring
- Compatible with wireless systems
- Flow rate up to 4000 l/min at 0.7 MPa
- Port sizes: 1/8, 1/4, 3/8, 1/2, 3/4, 1
- Modular connection.
Specifications
- Part number: AMS40A-F04C-PN-KLG
- Item number: 02503061
- Body Size: 40
- Thread Type: F (G)
- Port Size: 04 (1/2)
- N.O./N.C.: C [N.C. (Normally Closed)]
- Protocol: PN [PROFINET, OPC UA (When Wireless Adapter is Connected: Wireless Base)]
- Units: K (Units Selection Function)
- Manual Override: G (Non-locking Push Type)
- Lead time: 28 days
- Country of origin: JP
