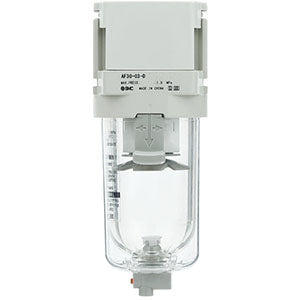

AF20-D to AF60-D, Air Filter | AF40-F02D-D
€72,01
Skip to product information
AF20-D to AF60-D, Air Filter | AF40-F02D-D
€72,01
VAT not included.
AIR FILTER
Modular-style air filter ISO 8573-1:2010 compliant Nominal filtration rating 5 µm Maximum flow rate up to 12500 l/min (ANR, 0.7MPa).
Features
- ISO 8573-1:2010 compliant
- Nominal filtration rating 5 µm
- Maximum flow rate up to 12500 l/min (ANR, 0.7MPa).
Specifications
- Part number: AF40-F02D-D
- Item number: 02188298
- Body Size: 40
- Thread: F (G)
- Port Size: 02 (1/4)
- Mounting: Standard
- Float type auto drain: D [Float Type Auto Drain (N.O.)]
- Bowl type: Standard (Polycarbonate Bowl)
- Drain Port: Standard
- Flow Direction: Left to Right
- Drain Cock w/Barb Fitting: None
- Pressure Unit: Name Plate and Pressure Gauge: MPa
- Lead time: 6 days
- Country of origin: CZ
